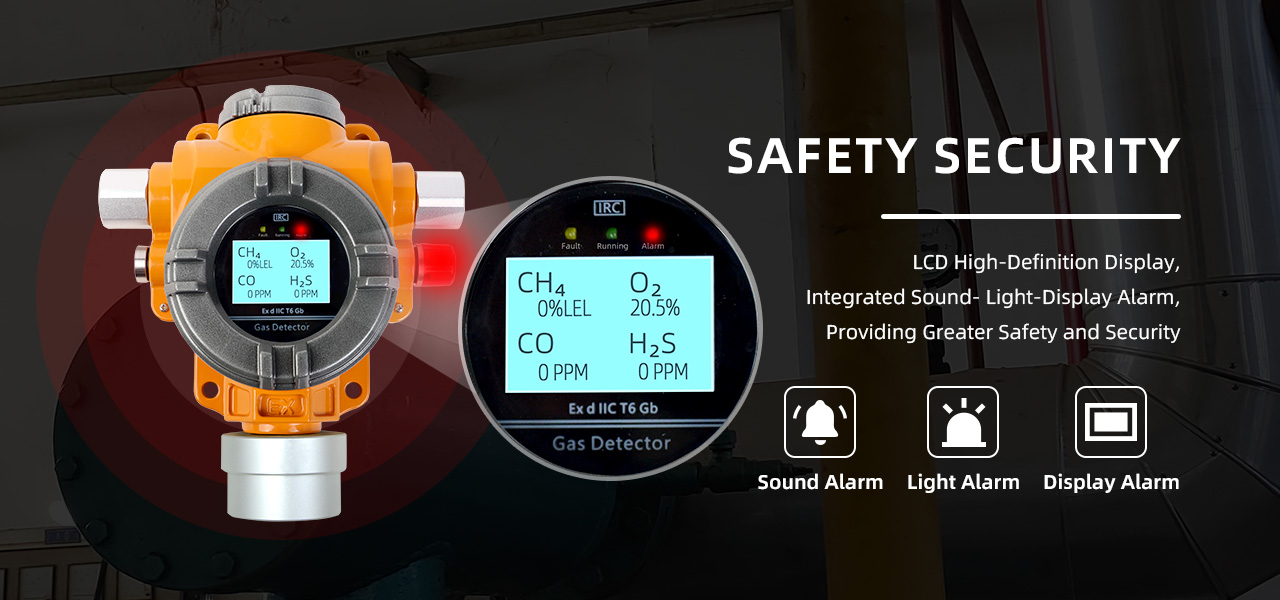

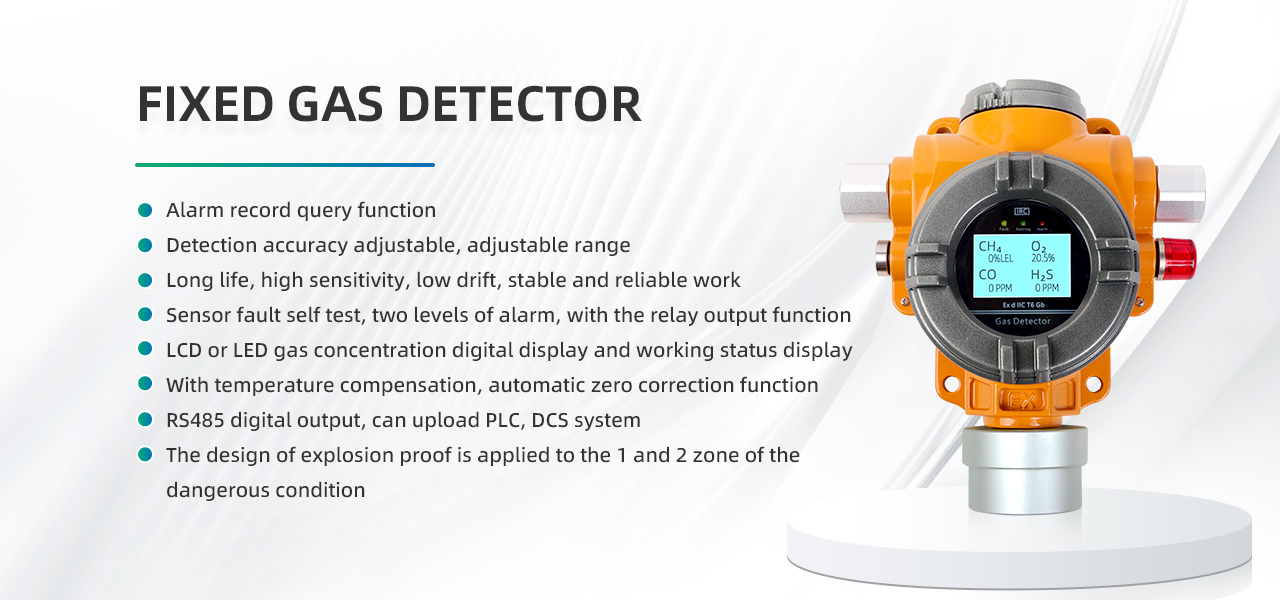

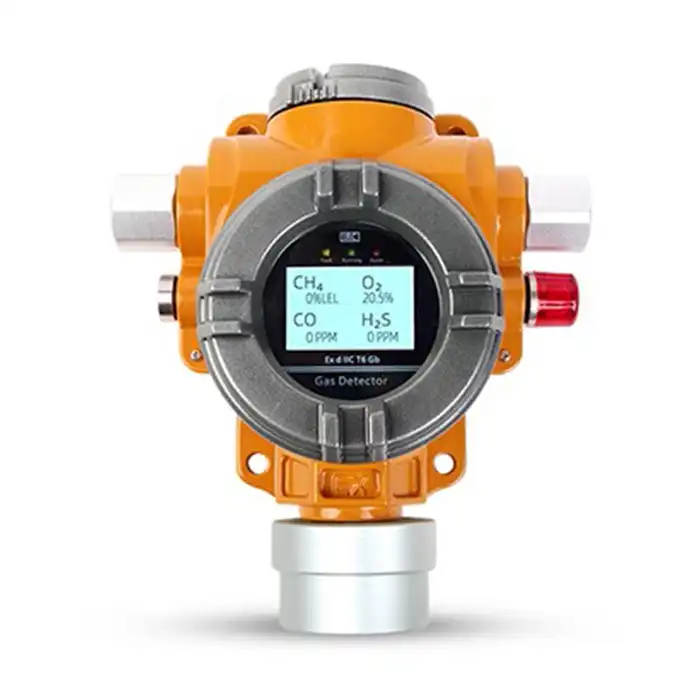

The 4-in-1 fixed Gas Detector is a multifunctional intelligent gas detection instrument, the instrument adopts high performance detection devices and micro computer control technology, and combined with automatic mount of advanced manufacturing technology, the products of both the scene buzzing indicating sound and flashing lights , and the real-time display of monitoring gas concentration field.
The 4-in-1 multi-functional gas detector can be in the air gas concentration signal into the electrical signal display and remote transmission, using three wire 4 to 20mA or four RS485 bus output, with long transmission distance and anti-jamming etc..

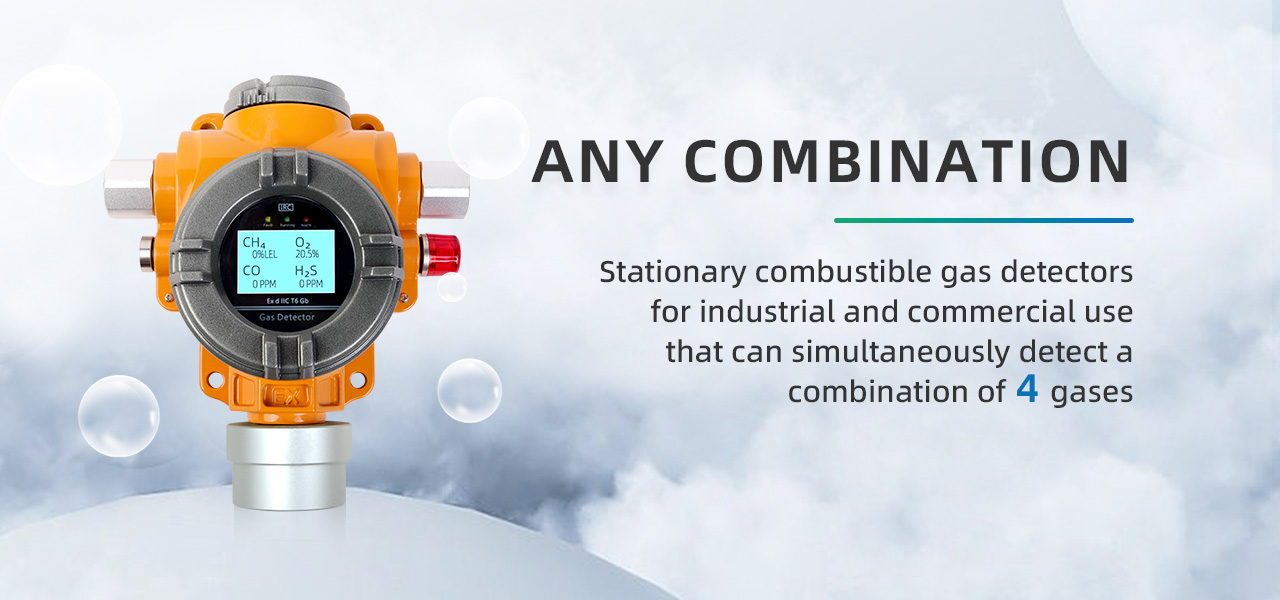

The 4-in-1 fixed Gas Detector can be used in chemical plant, smelting, fire, gas refrigeration and papermaking wastewater treatment, food, rubber, pharmaceuticals, petroleum refining, casting, mining, communications and other municipal fire power to anti explosion, poisoning prevention, anti suffocation in the industrial environment. this model candetect 1-4 different gases。
Technical Parameters
|
Detection principle |
Catalytic, semiconductor, infrared, PID |
|
Detection of gas |
Combustible gas;; toxic and harmfulgas; oxygen gas |
|

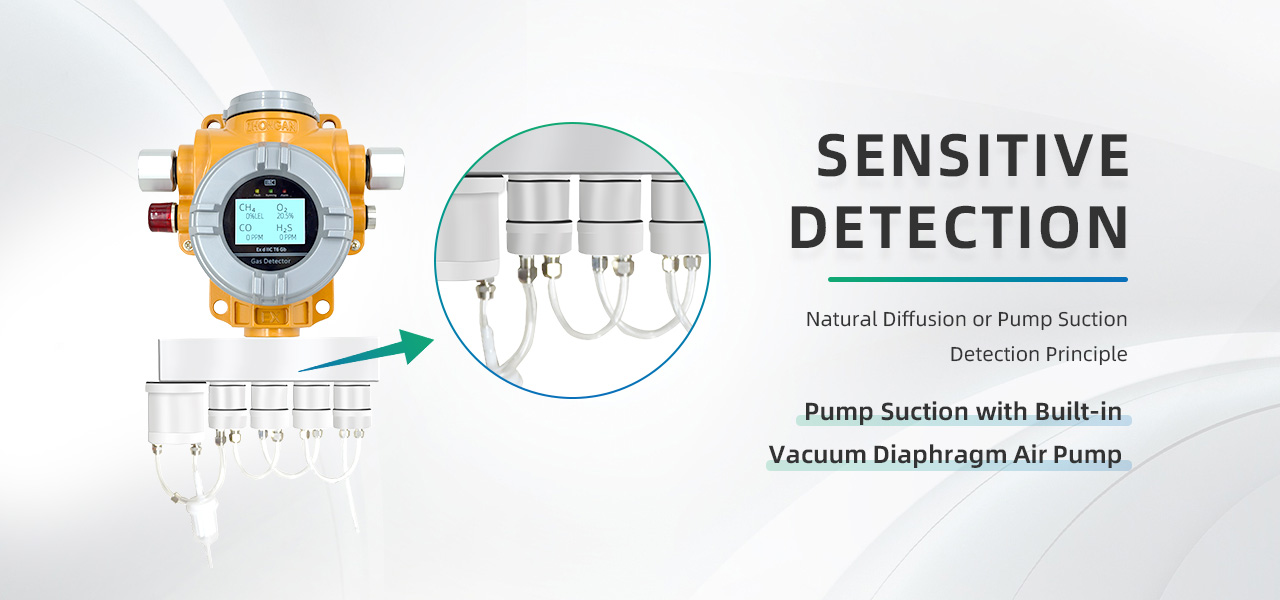

Sampling mode |
Natural diffusion |
|
Detection range |
（3～100%）LEL；0-****PPM |
|
Resolving |
1%LEL；1PPM/0.1PPM |
|
Measurement error |
±3%FS |
|
Status indication |
LCD、LED |
|
Debug mode |

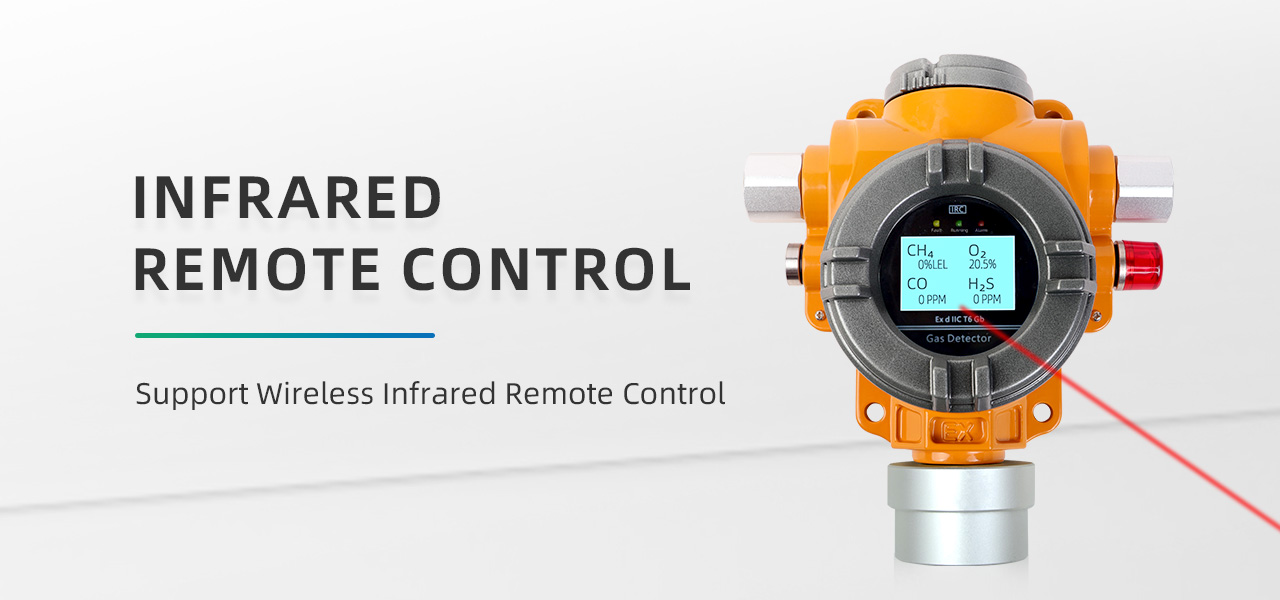

Infrared remote control |
|
Working temperature |
－40℃～70℃（combustible gas）；－20℃～50℃（toxic gas） |
|
Relative humidity |
≤93%RH |
|
Explosion-proof |
Ex ia IIC T6 Ga |
| Explosion-proof certificate number | CLEx24.1033X |
|

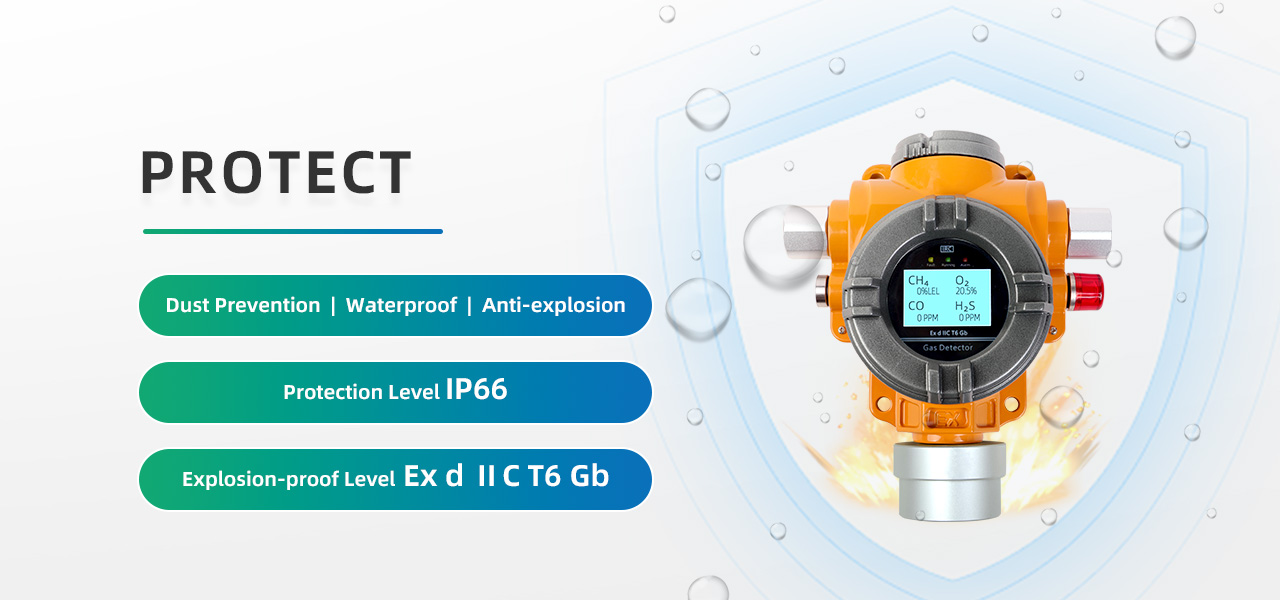

Protection Grade |
IP66 |
|
Power |
DC24V±10% |
|
Output signal |
4～20mA or RS485 |
|
Install the screw thread |
G1/2 |
|
Cable dimension |
≥1.5mm2×3；≥1.5mm2×4 |
|
Transmit distance |
≤1500m |
|
Size |
22cm*19cm*9cm |
|
Weight |
≤2000g |
